Good quality rotary evaporimeter 5l price with ce certificated

FOB Reference Price:Get Latest Price
  • 1 - 4 Units
    $1,728.00
  • >=5 Units
    $1,556.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Pharmaceutical Processing
Power Source:
Electric
Process:
Rotary
Place of Origin:
Henan, China (Mainland)
Brand Name:
Lanphan
Model Number:
RE-5000A
Voltage:
220V/50HZ
Power(W):
1.5KW
Dimension(L*W*H):
700*410*880mm
Weight:
42.5KG
Certification:
ISO
Name:
good quality rotary evaporimeter 5l price with ce certificated
Bath Kettle Temp. Control Range:
0-99℃
Rotating Power:
40W
Rotary Bottle Volume:
5L
Recycling Bottle Volume:
3L
Rotary Speed:
0-180rpm
Temp. Control Accuracy:
±1℃
Color:
Customized
Glass Material:
GG-17
Support Material:
Aluminium Alloy
After-sales Service Provided:
Overseas third-party support available
Warranty:
One Year
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
good quality rotary evaporimeter 5l price with ce certificated : carton or wooden case package, customized package is available.
Port
Shanghai, Tianjin, Qingdao
Lead Time :
Shipped in 7 days after payment

Good quality rotary evaporimeter 5l price with ce certificated

Can not view pictures? Please visit m.alibaba.com to search key words via your mobile browser.

Product Description

good quality rotary evaporimeter 5l price with ce certificated

RE-5000A rotary evaporator mainly used for continuous distillation of a large amount of volatile solvent under negative pressure. Especially for the concentration of extract liquor and distillation of receive liquid when chromatograph, it can isolate and purify reaction product. In reduced pressure condition, when solvent distillation, distillation flask in continuous rotation, the distillation flask is a pyriform or round-bottom flask who is connected to vacuum pump by a snakelike condenser pipe, the other open mouth of condenser pipe is connected to receiving flask to receive evaporated organic solvent. There is a three-way valve between condenser pipe and vacuum pump, when system connect to air, take down distillation flask and receiving flask to transfer solvent. Please reduce pressure first before rotate distillation flask; and please power off first before connect to air, to prevent the rotating distillation flask from falling off. Thermostatic water bath is the heat source for distillation. RE-5000A rotary evaporator mainly used in medicine, chemical engineering, biopharmacy industries for the concentration, crystallization, drying, separation and solvent recovery, especially suitable for concentrate and purify high temperature easily decomposed material. RE-5000A rotary evaporator has no display of electronic stepless speed regulation, if you require speed display, you can choose RE-5000B rotary evaporator, which adopts digital display mode, or you can choose RE-5000E rotary evaporator, which adopts liquid crystal display mode.

Product features of RE-5000A rotary evaporator:

  1. Use electrical lifting structure, press lifting button, evaporation bottle, condenser and receiving flask can up and down at the same time, max lifting distance reach 120mm.
  2. Two optional condenser structure for your choice, one is double pipeline convection principle, used to evaporate inorganic solvent; the other is single pipeline jacketed vessel, used to evaporate organic solvent. Vertical condenser saved space.
  3. Rotary axis is made from high borosilicate glass, heat-resisting, good sealing. Double sealed by Teflon and PTFE, good sealing effect.
  4. RE-5000A rotary evaporator is equipped with heating groove, inbuilt resistance wire heater, heating temperature is from room temperature to 99℃. Teflon recombination heating kettle has strong corrosion resistance ability and long service life. Water channel volume is 500ml to 5000ml, and the heating kettle can move around.
  5. RE-5000A rotary evaporator is equipped with temperature displayer, intelligent temperature control, digital display, PT100 senor temperature control. When water temperature reach to preset temperature, controller automatic cut off heater power supply; when lower than water temperature, controller automatic connect heater power supply; in this way to achieve constant water temperature.
Spectifications

Specifications of good quality rotary evaporimeter 5l price with ce certificated

Basic ParameterModelRE-5000A
Glass MaterialGG-17
Support MaterialAluminium Alloy
Inner Container MaterialAluminium Alloy+Teflon recombination pot, whole sealing heating   280*170mm 10L
Rotary Bottle Volume5L  50# flange port
Receiving Flask Volume3L  35# ball milling port
Rotary Power40W
Rotary Speed0-180rpm
Heating Power1.5KW
Bath Kettle Temp. Control Range0-99℃
Temp. Control Accuracy±1℃
Lifting Power20W
Lifting Stroke120mm
Voltage/Frequency (V/Hz)220V/50Hz
Overall Dimension (mm*mm*mm)700*410*880
Package Dimension (mm*mm*mm)640*540*690   wooden case
Package Weight (KG)42.5
Functional
Configuration
Rotary Speed Display ModeNo Display
Temperature Display ModePT100 Sensor Digital Display
Temperature Control ModeIntelligent Temperature Control
Sealing ModeBothway sealing by Teflon + Fluorine Rubber
Lifting ModeAutomatic lifting of main engine
CondenserVertical type condenser 100*590mm
Continuous Charging19# charging valve
Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.

Packing List of good quality rotary evaporimeter 5l price with ce certificated

Machine PartGlass Part
Head with the motor1 setRotary Bottle1 pc
Host1 unitRecycling bottle1 pc
Control box1 pcCondenser1 pc
Bath pot1 unit19# feeding valve1 pc
Recycling bottle clamp1 pcAdapter1 pc
PTFE Tube1 pcGlass Shaft1 pc
Heating wire1 pc
Fasten Screw1 pc
PTFE Flask remover1 pc
Nut with pad2 sets
Spare Parts
Operation Manual1 pc10A fuse2 pcs
Warranty Card1 pcSealing gasket1 pc
Quality Certificate1 pcPacking List1 pc
Product Details

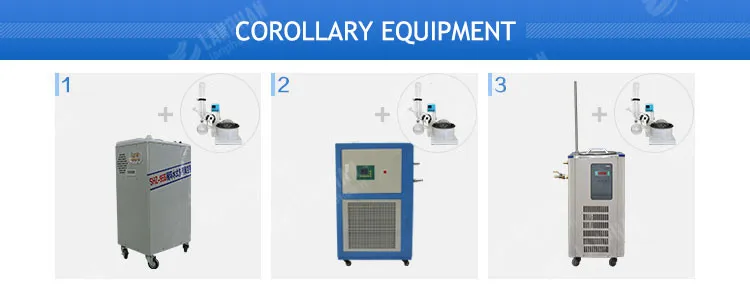

  1. Rotary evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..
  2. Rotary evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.
  3. Rotary evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.
Application

  1. Medicine: various application in laboratory of quality control, research and development departments: distillation/concentration/drying;
  2. Chemical: daily application in quality control and research laboratory: distillation/backflow reaction/re-crystallization/sublimation;
  3. Education: widely application in academic education: comprehensive evaporation application;
  4. Food/beverage: used for quality control and research of new ingredient: distillation/concentration/drying;
  5. Environmental analysis: used for prepare supervision sample of environment pollution: Soxhlet extraction/concentration;
  6. Fodder: used for quality control and research of new ingredient: distillation/concentration/drying.
Workshop

Our Services

Pre-sale Service

  1. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper types;
  2. Provide detailed product performance specification;
  3. Provide professional quoted price;
  4. Provide 24-hour technical consulting reply.
  5. Provide other corollary equipment according to client requirements.

In-sale Service

  1. Begin to supervise from raw material, its qualified rate can reach to 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
  3. Provide product’s inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport products strictly accordance with export standard;
  6. Provide transportation schedule information to clients timely.

After-sale Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification.
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.
  7. Provide assistant service if product is damaged during transportation.
FAQ

Frequently asked questions of good quality rotary evaporimeter 5l price with ce certificated

  1. Ask: What’s the operating principle of rotary evaporator?
    Answer: Under the condition of negative pressure, evaporating flask rotating in the thermostat water bath, which makes solution form a thin film in bottle wall, so as to increase the evaporation area. Evaporating efficiently under low temperature, then condensate recycling through condenser pipe and concentrate to isolate the material to reach experiment requirements.
  2. Ask: What’s the core technology of Rotary Evaporator?
    Answer: The key is system’s gas tightness, that is whether system can keep high vacuum degree under all sorts of solvent’s corrosion and movement state. Henan Lanphan’ s R series instrument, which is sealed by composite material four fluorine rubber and glass, can stand all sorts of solvent, has reliable gas tightness and can maintain a high vacuum degree above -0.096MPa.
  3. Ask: What factor decides the working efficiency of Rotary Evaporator?
    Answer: For same type equipment, mainly includes: steam temperature, vacuum degree and cooling water temperature. Restricted by some material’s thermolability, the steam temperature may have certain limitation when working, so high vacuum degree and low cooling water temperature are two main factors for efficiency improving (can select cryopump to lower the temperature)
  4. Ask:How to select all kinds of rotary evaporator?
    Answer: As for structure, our R series products all have excellent corrosion resistance ability and leakproofness ability. According to the solvent volume, 2L, 3L, 5L’s machine is fit for lab and sample test; 5L, 10L, 20L’s machine is fit for medium experiment; 20L, 50L’s machine is fit for medium experiment and production, especially suitable for the extraction of metal ion-avoiding polluted material.
  5. Ask: What’s the feature of rotary evaporator comparing to other evaporators?
    Answer:It has the advantage of small structure, efficient, easy to observe and no metal ion pollution. It is applicable for laboratory, production and valuable material extraction. Its leakproofness ability can compare favorably with foreign equipment while it remain improvement in appearance and humanization design.
  6. Ask: How to select vacuum pump for rotary evaporator?
    Answer:We recommend water-circulating pump which can bear all sorts of solvent corrosion and can vacuumize to -0.095MPa(to satisfy using requirements). According to the solvent volume, we can offer various vacuum pump types.

Packaging:

  1. Carton+wooden cases.
  2. Customized packaging can be available.

Shipping:

  1. We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.
  2. You can also choose the appropriate one based on your timeline and budget.
  3. You can choose to use your own shipping agent.
Shipping methodNote
ExpressDoor to door, very convenient, don't need to clearance or pick-up
By airAirport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By seaPort to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you.
Advantages

Comparing to similar products, good quality rotary evaporimeter 5l price with ce certificated owns a lot of superiority:

  1. Newest research rotary evaporator, heating kettle is made from Teflon recombination material, whole sealing heating mode to prevent dry running, applicable of water and oil.
  2. Adopt international advanced EL gastight system, Teflon + fluorine rubber double sealing ring, to keep high vacuum degree, gas-liquid separation, no drawback.
  3. High efficient double condenser to ensure high recovery rate.
  4. Rotary bottle is connected by nut to convenient for assemble and unassemble.
  5. Discharging valve is convenient to recycle solution.
  6. Vacuum check valve is installed between receiving flask and vice condenser, evaporation won’t be effected when discharging, vacuum condition is applicable for continuous feeding.
  7. Vacuum meter makes it possible to adjust to a best working vacuum degree for low boiling point material.
  8. Thermostatic control the water bath, lifting up and down.
  9. Reasonable structure, mechanical structure is made from stainless steel and aluminium alloy, glass component is made from borosilicate glass.
  10. Applicable for continuous feeding.
  11. Double digital display of temperature and rotary speed.
