New Generation 50L Rotovap with Double Vertical Coil Condenser

  • 1 - 4 Units
    $3,117.00
  • >=5 Units
    $2,805.00
Application:
Pharmaceutical Processing
Model Number:
RE-5003
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Food Shop, Food & Beverage Shops
Condition:
New
Power Source:
Electric
Process:
Rotary
Place of Origin:
Henan, China
Brand Name:
Lanphan
Voltage:
220V/50HZ
Power(W):
8KW
Dimension(L*W*H):
1520*620*2470mm
Weight:
170KG
Certification:
ISO
Warranty:
One Year
After-sales Service Provided:
Online support, Overseas third-party support available
Vacuum Degree:
0.098Mpa
Rotating Power:
180W
Rotary Bottle Volume:
50L
Recycling Bottle Volume:
20L
Up and Down:
Manual Up And Down of Bath Kettle
Temperature Accuracy:
±1℃
Color:
Customized
Glass Material:
GG-17
Support Material:
stainless steel
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
New Generation 50L Rotovap with Double Vertical Coil Condenser : carton or wooden case package, customized package is available.
Port
Shanghai, Tianjin, Qingdao
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 10 To be negotiated

New Generation 50L Rotovap with Double Vertical Coil Condenser





50L Rotovap with Double Vertical Coil Condenser,50L Rotovap with Cooling Circulator,50L Rotovap with Low-Temp Circulator

Product Description

New Generation 50L Rotovap with Double Vertical Coil Condenser

RE-5003 rotary evaporator's rotary bottle maximum capacity is 50L, receiving bottle's maximum capacity is 30L, rotate speed is 0-90r.p.m, motor power is 250W. RE-5003 rotary evaporator(evaporating bottle volume>10L) is equipped with double condenser(main and vice condenser), which has better condensation effect and higher recovery rate. Because this rotary evaporator works under vacuum condition, and contact segment all adopt high temperature resistance material-high borosilicate glass and PTFE material, it is especially suitable for heat reactive material and material which is corrosive to stainless steel's concentration, crystallization, separation and solvent recovery.

The rotary evaporator has advantages of large contact area, high evaporation efficient, easy to handle, low noise, good sealing performance, complete in specifications and can manage easily foam material. It already has various specification products: 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L and so on, and the 100L rotary evaporator is an exclusive research and developed large-size rotary evaporator of our company, designed for the purpose of mass production need.

RE-5003 rotary evaporator has following features:

  1. Rotating body is composed of a reliable three-phase asynchronous motor and a transducer control device;
  2. Double sealed by PTFE and fluorine rubber sealing ring to keep high vacuum degree, separate gas and liquid and maintain no backflow;
  3. Adopt main and vice efficient condenser, there has automatic switching device between vice condenser and receiving bottle. Below receiving bottle, equipping with tapping valve, which makes it convenient to recycle solvent and the recovery rate approach to 100%;
  4. Rotary bottle is connected by nut, that is easy to install and dismount;
  5. Continuously charging and recycling material;
  6. Vacuum system is equipped with vacuum meter, choose best working vacuum degree to low boiling point materials;
  7. Heating kettle is applicable for both water and oil, digital thermostat control and manual up and down, closed resistance wire heater, temperature control by K type transducer. Besides, heating groove can move left and right;
  8. Has the function of dry burning resistant protection and safe temperature loop;
  9. Smooth starting, can positive and negative inversion operate;
  10. Durable design, can choose plate bursting disk glass component as needed.
Spectifications

Technical Parameter of New Generation 50L Rotovap with Double Vertical Coil Condenser

Basic ParameterTypeRE-5003
Glass MaterialGG-17
Support Materialstainless steel
Shell MaterialAntisepsis Plastic Spraying 710*620*700 mm
Inner Container Materialstainless steel 500*220 mm
Baseboard Size804*574 mm
Volume of Rotary Bottle50L ¢125 flange aperture
Volume of Recycling Bottle20L ¢60 flange aperture
Vacuum Degree0.098Mpa
Rotating Power180W
Rotating Speed0-110rpm
Heating Power8KW
Temperature Control Range of Bath Kettle400℃
Temperature Accuracy±1℃
Voltage/Frequency (V/Hz)220V/50Hz
Up and Down Distance180mm
Shape Size(mm*mm*mm)1520*620*2470 mm
Package Weight (KG)170
Function AllocationSpeed Adjustment ModeElectrodeless Speed Regulation
Rotating Speed Display ModeDigital Display
Temperature Display ModeDigital Display K Type Sensor
Temperature Control ModeSmart Temperature Control
Sealing ModePTFE Sealing
CondenserVertical efficient condenser, main condenser 160*840, assistant condenser 160*530
Up and Down ModeManual Up and Down of Bath Kettle
Continuous Charging40# Standard Aperture Feeding Valve
Vacuum Display ModeVacuum Meter
Continuous CollectingCheck valve control
Charging ModePTFE Charging valve, ¢60 flange aperture
Optional EquippingUp and Down ModeAutomatic Up and Down
Collecting DeviceDouble Recycling bottle
Anti-explosionAnti-explosion Frequency Changer, Anti-explosion Dynamo EX120W
Frame PartPlastic Spraying or PTFE Spraying
Bath Kettle Materialwhole 304 stainless steel
Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.

Packing List of New Generation 50L Rotovap with Double Vertical Coil Condenser

Machine PartGlass Part
Nose1 setRotary bottle1 unit
Floor shelf1 setRecycling bottle1 unit
Aluminum Backing Ring of Assistant Condenser1 unitMain condenser1 unit
Vacuum meter1 pcAir conduction bottle/td>1 unit
Rotary nut1 setFeeding Valve1 unit
Assistant condenser nut1 set¢60 flange tap1 unit
PTFE sealed joint sleeve1 set24# vent valve2 units
PTFE feeding valve with flange plate1 set19# vent valve1 unit
Check valve1 setRotary shaft1 unit
Aluminum Backing Ring of recycling bottle1 unitAssistant Condenser1 unit
¢60F4 pad3 units
¢80F4 pad1 unit  br>
Big black hat3.5 sets
Transducer1 set
Water bath kettle1 unit
Condenser pipe clamp1 unit
The final interpretation of this operation manual is reserved by our company. If any change in product, please be subject to the real product. The operation manual will not be changed.





50L Rotovap with Double Vertical Coil Condenser,50L Rotovap with Cooling Circulator,50L Rotovap with Low-Temp Circulator

Product Details

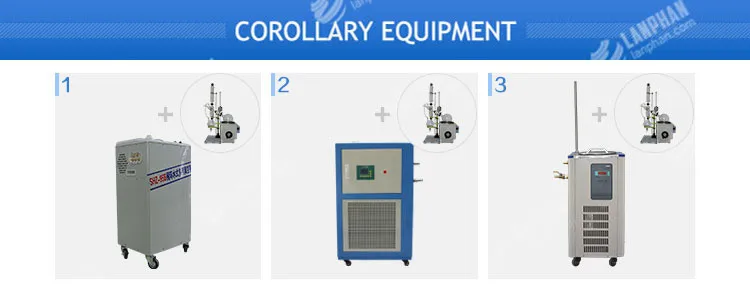

  1. Rotary evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..
  2. Rotary evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.
  3. Rotary evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.





50L Rotovap with Double Vertical Coil Condenser,50L Rotovap with Cooling Circulator,50L Rotovap with Low-Temp Circulator

Application

RE-5003 rotary evaporator has a large capacity of 30L, designed for the purpose of mass production need, is mainly used for pilot plant production in biology, chemical engineering, pharmacy and food industry.

The specific application as follows:

  1. Medicine: various application in laboratory of quality control, research and development departments: distillation/concentration/drying;
  2. Chemical: daily application in quality control and research laboratory: distillation/backflow reaction/re-crystallization/sublimation;
  3. Education: widely application in academic education: comprehensive evaporation application;
  4. Food/beverage: used for quality control and research of new ingredient: distillation/concentration/drying;
  5. Environmental analysis: used for prepare supervision sample of environment pollution: Soxhlet extraction/concentration;
  6. Fodder: used for quality control and research of new ingredient: distillation/concentration/drying.
Workshop

Our Services

Pre-sale Service

  1. According to product's using condition, technicians will offer rationalization proposals to assist clients to select proper types;
  2. Provide detailed product performance specification;
  3. Provide professional quoted price;
  4. Provide 24-hour technical consulting reply.
  5. Provide other corollary equipment according to client requirements.

In-sale Service

  1. Begin to supervise from raw material, its qualified rate can reach to 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
  3. Provide product's inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport products strictly accordance with export standard;
  6. Provide transportation schedule information to clients timely.

After-sale Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product's standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product's running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we'll offer you satisfied answer in time. We'll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification.
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.
  7. Provide assistant service if product is damaged during transportation.
FAQ

Frequently asked questions of New Generation 50L Rotovap with Double Vertical Coil Condenser

  1. Ask: What's the operating principle of rotary evaporator?
    Answer: Under the condition of negative pressure, evaporating flask rotating in the thermostat water bath, which makes solution form a thin film in bottle wall, so as to increase the evaporation area. Evaporating efficiently under low temperature, then condensate recycling through condenser pipe and concentrate to isolate the material to reach experiment requirements.
  2. Ask: What's the core technology of Rotary Evaporator?
    Answer: The key is system's gas tightness, that is whether system can keep high vacuum degree under all sorts of solvent's corrosion and movement state. Henan Lanphan' s R series instrument, which is sealed by composite material four fluorine rubber and glass, can stand all sorts of solvent, has reliable gas tightness and can maintain a high vacuum degree above -0.096MPa.
  3. Ask: What factor decides the working efficiency of Rotary Evaporator?
    Answer: For same type equipment, mainly includes: steam temperature, vacuum degree and cooling water temperature. Restricted by some material's thermolability, the steam temperature may have certain limitation when working, so high vacuum degree and low cooling water temperature are two main factors for efficiency improving (can select cryopump to lower the temperature)
  4. Ask: What's the difference between vertical and inclined condenser?
    Answer: They have no difference essentially. Vertical condenser is gradually popular because of its small space usage and convenience for transportation and use. Most high-capacity instruments use vertical condenser.
  5. Ask: What's the design basis of main engine and water bath kettle rising and falling?
    Answer: It's mainly from the consideration of convenience, safe and economical. Generally, small-size rotary evaporators below 5L use main engine rising and falling and evaporators which are above 5L use water bath kettle rising and falling.
  6. Ask:How about the anti-explosion ability of R series Rotary Evaporator?
    Answer:Our company's Rotary Evaporator adopt alternating current dynamo, stepless speed regulating (or frequency control), no electric brush and no spark in operation. Water bath kettle which goes with the evaporator adopts nitrogen-sealed relay control, silicon-controlled contactless switch and vacuum switch. Manual control switch adopt twice circuit control which make electric current less than 3mA and has favorable anti-explosion feature.
  7. Ask:How to select all kinds of rotary evaporator?
    Answer: As for structure, our R series products all have excellent corrosion resistance ability and leakproofness ability. According to the solvent volume, 2L, 3L, 5L's machine is fit for lab and sample test; 5L, 10L, 20L's machine is fit for medium experiment; 20L, 50L's machine is fit for medium experiment and production, especially suitable for the extraction of metal ion-avoiding polluted material.
  8. Ask: What's the feature of rotary evaporator comparing to other evaporators?
    Answer:It has the advantage of small structure, efficient, easy to observe and no metal ion pollution. It is applicable for laboratory, production and valuable material extraction. Its leakproofness ability can compare favorably with foreign equipment while it remain improvement in appearance and humanization design.
  9. Ask: How to select vacuum pump for rotary evaporator?
    Answer:We recommend water-circulating pump which can bear all sorts of solvent corrosion and can vacuumize to -0.095MPa(to satisfy using requirements). According to the solvent volume, we can offer various vacuum pump types.





50L Rotovap with Double Vertical Coil Condenser,50L Rotovap with Cooling Circulator,50L Rotovap with Low-Temp Circulator





50L Rotovap with Double Vertical Coil Condenser,50L Rotovap with Cooling Circulator,50L Rotovap with Low-Temp Circulator


Packaging:

  1. Carton+wooden cases.
  2. Customized packaging can be available.

Shipping:

  1. We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.
  2. You can also choose the appropriate one based on your timeline and budget.
  3. You can choose to use your own shipping agent.
Shipping methodNote
ExpressDoor to door, very convenient, don't need to clearance or pick-up
By airAirport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By seaPort to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you.
